I have been reading on the "Grumble" about this method of attaching the wire to the back of the finished frame for hanging.
D.I.T.H "Direct in the hole". 1st drill a 1/2" hole in the moulding where you would normally fix a D ring.
2 insert the end of the wire
3 screw a pan head screw halfway home
4 twist the wire around the screw and completely drive the screw home. Repeat the other side.
If I read this correctly, a well-known US framer and educator has had framed images on test using method since 2006 showing no adverse effects.
Having never come across this method before I would very much like to hear any opinions, thoughts or experiences
Thanking you in advance.
Posted: Fri 18 Jan, 2019 8:30 pm
I have never heard of such a method of securing a wire or cording, for that fact, to a frame rail for hanging.
It all depends on the quality of the wood and its strength as well as the humidity level of where it is displayed. From an engineering standpoint, the wire will have a tendency to be cut by the threads of the screws. There is the unknown regarding expansion and contraction as well as oxidation (rust and corrosion). It is not a liability that I would like to take on not knowing how it will be hung.
Posted: Fri 18 Jan, 2019 9:05 pm
That's just about the extreme in penny pinching! What do d-rings cost - very little. What's the level of cost saving - ridiculous! What's the customers impression - rubbish!
Who's impressed - Not me.
Posted: Fri 18 Jan, 2019 10:02 pm
Jerome, do you not read the Grumble, it's a thread that's bean been discussed at length on there
Mark, I always love your replies
but that was outstanding
Please do not think I am advocating this because I'm not. I just wanted to run the idea by our members - that's all.
Posted: Sat 19 Jan, 2019 5:29 am
I did not read the thread on the Grumble.
The guy who made the original suggestion was booted off the Grumble. I had already blocked him from my feed when that post was made.
Posted: Sat 19 Jan, 2019 9:07 am
Jerome, that's interesting.
I will admit the D.I.T.H. discussion is difficult to locate on the Grumble. I have found entering those letters in the search box has a negative result
If only I were more competent with my PC, I would display a link, in blue, as others do, directing to the thread.
However, if you can find the thread were a Grumble member asks "where to obtain good quality screw eyes" you will find, in that thread, a discussion about using this method. It goes with out saying, this poor framer got taken to task for using screw eyes, and it was within that thread that I read opinions on hanging frames using the D.I.T.H. method. I will also admit, I found some replies very surprising
I hope that helps.
Posted: Sat 19 Jan, 2019 10:04 am
http://www.thegrumble.com/index.php?thr ... -use.4731/
Jim Miller describes the method using washers and shows some photos further down in the thread.
Peter, when I first read your post I thought you were talking about drilling a hole 1/2" in diameter
I've never used wire so will stick with cord and D-rings.
Not your average framer wrote:That's just about the extreme in penny pinching! What do d-rings cost - very little. What's the level of cost saving - ridiculous! What's the customers impression - rubbish!
Who's impressed - Not me.
I agree with Peter... outstanding reply
Posted: Sat 19 Jan, 2019 11:57 am
I skimmed over that thread on the G and I thought it was a method of attaching a wire to a diddly moulding where
there isn't enough room to fix a d-ring.
Maybe I wasn't paying attention......
In any case if there isn't room for a d-ring then the frame probably wouldn't support the whole package and the hangings
would be batter fixed to a (sturdy) backboard.
Posted: Sat 19 Jan, 2019 6:55 pm
Peter, you are not wrong, there is a thread about attaching a wire to a diddly moulding where there is isn't enough room for a D-ring and you are right again about there being a better way to support the package by fixing to a sturdy backboard.
David, sorry to cause confusion by excluding the word "deep" when drilling the 1/2" hole, and thank you for the link to that lengthy post.
Looking again at those photos of the wire, washer, and screws and after reading the arguments in favor (on the Grumble) I am convinced this D.I.T.H method has very little merit.
When a customer comes to collect their framed artwork and is shown the finished package I always have swung it around (if not two hefty) to show the back. There is no way could I show a customer a frame finished in this way without feeling very embarrassed.
Posted: Sat 19 Jan, 2019 8:18 pm
My father was a licensed architect and structural engineer and did watercolors as a hobby. He made his own models of buildings for clients as well as watercolored renderings. I had some training from him leading over his drafting board. Therefore, I have a slanted way of looking at things. My first approach is always from an engineers eye and I skip over a lot of hairbrained ideas.
Posted: Sat 19 Jan, 2019 9:46 pm
So how do you determine what weight of picture that this methon of hanging will support.
(1) One particular variable to be considered in connection of determining the loading that wire will support using this method is going to be the strength and the density of the frame moulding.
(2) Also how do you determine the most appropriate drill diameter to suit any particular size of screw, together with any particular thickness of hanging wire.
(3) After screwing the screw into the hole, how do you know if the wire has been cut through by the rotation of the threads of the screw biting into the wire.
(4) If brass wire is being employed, what about the bi-metallic action between the steel screw and the brass wire. Bi-metallic action between steel and brass is well known to cause corrosion effects to the brass.
Anyone want to offer any suggestions regarding the longevity of such a mounting arrangement? I think we may be talking about guesswork at best.
Posted: Sun 20 Jan, 2019 12:58 pm
Good to see someone thinking outside the box. Here’s me beleiving that I knew it all, but I’ve never heard of this before. I’m embarrassed to say that, even though on a good day I consider myself of average intelligence, in over 30 years of framing I never thought of this.
Don’t get me wrong, I’m not about to give up on the trusty D-ring as my go to fixing, but there may be situations where DITH might be useful. However the limitations of this method may dictate that I never actually use it in real life.
Yes it does solve the overhang problem that I get when using a D-ring on a narrow moulding, but:
- DITH would be much more expensive to implement than a D-ring, screw eye, etc.
- Could only be used on a hard wood
- Probably limited to smaller frame sizes, but would conduct tests if I was seriously going to try this on larger sizes.
- Plastic coated picture wire only
- Customer would probably be unable to adjust string length when lining up with adjacent pictures
- While DITH is actually more expensive than the more traditional fixing methods, due to the extra faffing around time involved, the customer is probably going to perceive it as cheap looking. So for this reason, I’ll probably never use it.
OK, there's not much love for DITH here, but whoever dreamt it up should not be discouraged, maybe their next idea will be a real winner!
Posted: Sun 20 Jan, 2019 3:25 pm
I've seen a lot of hangings that have been attached by DIYers. Some of them are very conical. Bits of cotton wrapped around
drawing pins. Staples. Washing line. This idea seems to stem from a similar source.
I've seem a lot of other 'improved' framing methods promulgated and without exception they involve a lot more work than
doing it in the time-honoured way. That's not to say that I'm not open to new ideas, but jamming a wire into a hole and locking
it in place with a screw is what I would term a 'lash up'.
Posted: Sun 20 Jan, 2019 4:20 pm
I suppose one guy's "outside the box thinking" will forever be another's "DIYers lashup"
Proof Of Concept
Posted: Tue 22 Jan, 2019 11:39 am
Thought I'd give it a go and test this idea for myself.
10mm pan head screw, pilot hole 7mm deep, plastic coated picture wire, A4 frame.
I thought this would look cheap and ugly, however it looks OK, kind of neat
No visible wire twisting or knots.

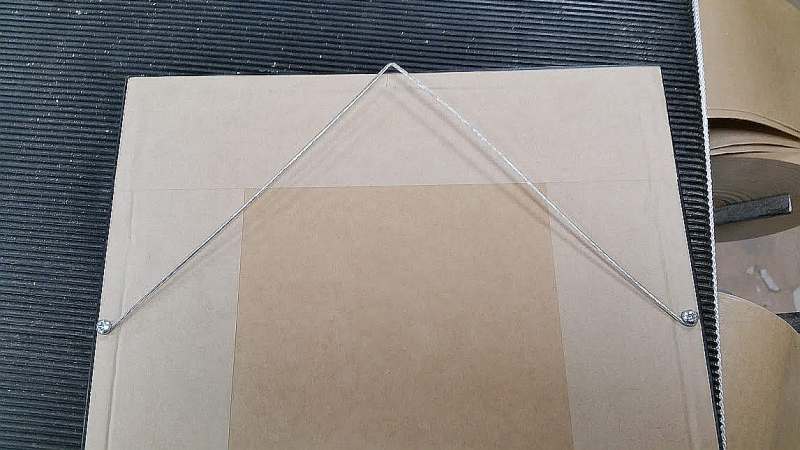

This shows the frame supporting 3 paper covered concrete blocks which we use in the
workshop whenever stuff needs to be weighed down. They are 6.5 Kg each.
Total test weight 19.5Kg or 43lbs. Maybe one day I'll test to failure, but my guess the
frame will easily support twice this weight.
This test was just to satisfy my own curiosity but I thought I'd share it with everyone. I think it shows that while it has its limitations, the DITH idea is not completely crazy.
In conclusion: Will I be using DITH? Probably not, it is too time consuming. However I'd be queueing up to buy a (cheap) hand tool that would automate the job.
Posted: Tue 22 Jan, 2019 12:58 pm
I have a few engineering questions with your test.
- - What is the gauge of the wire?
- What is the size and length of the screw? 10mm long?
- What type of wood was used in the frame?
- What is the profile size of the frame moulding?
- What was the angle of the wire in relation to the sides?
- How deep was the wire inserted into the molding?
- What amount of torque was placed on the compression of the twist of wire between the screw moulding?
Posted: Tue 22 Jan, 2019 1:23 pm
The thought occurs that it might be fine most of the time, but eventually there would be a frame that was just a bit heavy and
a screw that bit too far into the wire.
In terms of economy, I could fix two d-rings and attach the wire in less time.
Posted: Tue 22 Jan, 2019 5:03 pm
I am assuming that yours is a genuine quest for enlightenment and not a prelude to some sort of passive-aggressive down the line gotcha. I assure you that no trickery was involved and I have reported my genuine findings without any exaggeration. Like I said, my conclusion is that I’ll probably never use this method, but it is interesting and, as I think my experiment shows, does not deserve to be dismissed out of hand
You must not have understood the significance of “A4 frame” in the caption of the first image. It refers to the frame size. And with that knowledge I think with that anyone with an engineering bent, such as yourself, should be able to work out the scale of the photos and deduce the answers to some of your questions.
But, regarding the questions with answers that you might not be able to deduce:
Gauge of wire
Maybe you could look that up on the manufacturer’s site, however the diameter appears to be a bit over 1mm, maybe 1.2 – 1.5mm. Note that my demo appears to demonstrate a huge safety margin in the manufacturer’s 25LBS max claim
Sorry, don’t know the type of wood, it is hard though, like I said it should be in my earlier post. The profile is 12mm high and 9mm wide at the base.
How deep is the wire inserted
Are you really asking if the wire was inserted deeper than the pilot hole?
Amount of torque
Really Jerome? How do you want it, lbf ft or Nm? Either way I don’t have a clue.
However: the screws were tightened just the same as any other, such as when screwing in a D-ring.
Posted: Tue 22 Jan, 2019 11:04 pm
That's interesting and appears to stand up to load bearing quite well, but I'm not completely happy about how customers would perceive this as reflecting on my own reputation, if I ever used this method.
For me, I will still go for d-rings, but I would not rule out using the technique for future work that I might intend selling in local auctions, if I had anything worth auctioning.
Posted: Wed 23 Jan, 2019 2:27 pm
No offense to your questions and my questions are from an engineering standpoint. It was a good form of test.
Am I correct in assuming that the length of the screw thread was 10mm?
The type of wood would indicate the ability of the screw to not pull out.
The wire depth is important regarding the total amount of contact (grab) over which the screw contacts the wire. All the way in or part way would have sufficed.
The strong torque compression between the screw and the wood can transfer the load from the threads to the head of the screw.
Attached is a link to the wire manufacturer. #4 wire. The heavier the cable the more stands there are that make up the cable. If some of the cables are broken, there are still some wires left to support the load. The cable just looked a bit thick to me.
https://wire-cablespecialties.com/colle ... 5070257291
Computers are great tools. I can convert imperial vs metric force, length, mass, measurements. I still have my slide rule from college.
