cassesse cs88

[paige3]

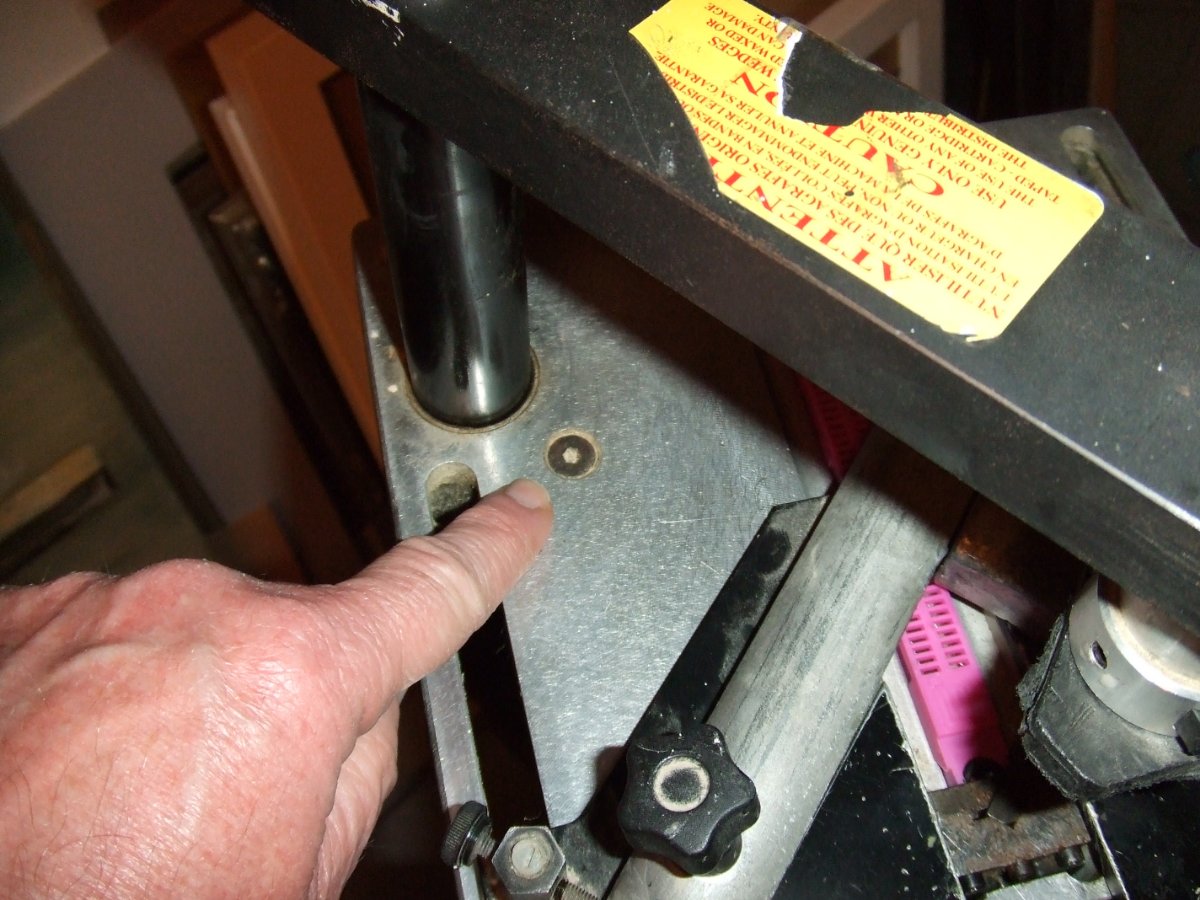

Hi could someone tell me the name of the cable and its function , it below the screw that i am pointing at see picture.

[Not your average framer]

The cable actuates the rebate clamp. There's also a spring which is sumething to do with the rebate clamp.

[David McCormack]

As Mark says, it operates the rebate clamp when you use the foot pedal to hold the moulding against the fences. If you need spare parts the codes are:

Spring Z12
Outer cable Z1428
Inner cable Z1539

I think Wessex stock the spring and you could try https://www.underpinner-spares.co.uk for the cables or https://www.ukframingsupplies.net

[paige3]

thanks for replying, much appreciated.
