split in synthetic moulding

[Trinity]

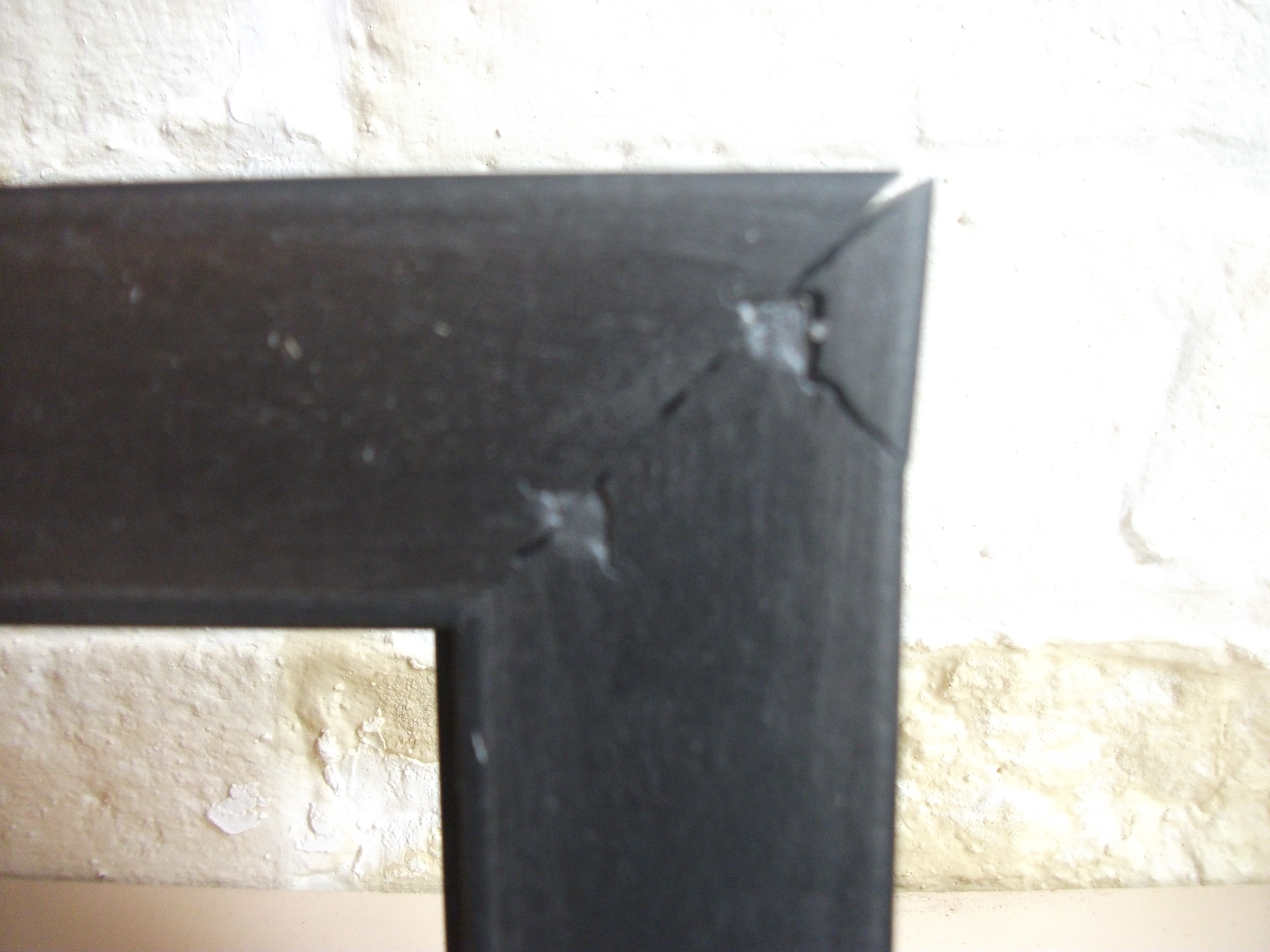

Arggh! One of the lenghts on one of the corners has burst at the outer positon of the v nail. The moulding is 38 x 38 excluding the rebate and I stacked 2 x 12's in each corner, The offending wedge was positioned 15 mm from the outer edge , the other 38mm. All of the postions sit dead on the mitre but this one is off to one side.
Am I too close to the outer edge, do the synthetics not like stacking the wedges


[Jonny2morsos]

Yes, you are too close to the outside edge. Look in the Lion catalogue or Mainline Mouldings website for their recommendations for joining synthetic mouldings.

Regarding stacking: take some waste pieces and join them with stacked wedges then take them apart and inspect the results.

I did this last week and was surprised to find what I did!

[Trinity]

Thanks, - I've sure got some waste pieces now! The long bits will make the short bits, bit it's another lenght tomorrow I'm afraid.

[Trinity]

I redid this frame tonightwith wedges at 25 and 35 from the rear and across the 50+ mitre. it worked a treat, although I've notice the joints are slightly open at the back, front and sides good. Everythings taught and I'm leaving it at that.
